Haiyan
Minimum central pressure (hPa)
| Experiment | Changes | 13110600 | 13110603 | 13110606 | 13110609 | 13110612 | 13110615 | 13110618 | 13110621 | 13110700 | 13110703 | 13110706 | 13110709 | 13110712 | 13110715 | 13110718 | 13110721 | 13110800 | 13110803 | 13110806 | 13110809 | 13110812 | 13110815 | 13110818 | 13110821 | 13110900 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Present day | control | 948.79 | 943.927 | 930.441 | 920.779 | 918.647 | 912.994 | 908.338 | 901.38 | 894.952 | 890.169 | 888.371 | 885.36 | 883.447 | 884.315 | 888.803 | 895.575 | 905.1286667 | 926.9203333 | 933.727 | 941.5555 | 941.985 | 940.8135 | 943.013 | 942.299 | 941.198 |
| RCP4.5 | -10.571 | 949.237 | 946.407 | 932.754 | 922.341 | 921.087 | 920.119 | 920.374 | 919.704 | 917.212 | 908.66 | 897.791 | 895.072 | 894.018 | 898.832 | 899.953 | 897.233 | 894.895 | 920.829 | 933.607 | 936.349 | 940.777 | 944.237 | 947.622 | 950.266 | 950.92 |
| RCP8.5 | -26.798 | 949.581 | 948.469 | 934.877 | 923.94 | 924.701 | 927.963 | 928.199 | 926.931 | 922.477 | 919.652 | 916.079 | 911.603 | 911.654 | 910.245 | 910.567 | 911.014 | 913.01 | 922.2216667 | 933.7633333 | 938.515 | 942.318 | 947.4465 | 948.964 | 952.115 | 952.452 |
Maximum wind speed (m/s)
| Experiment | Changes | 13110600 | 13110603 | 13110606 | 13110609 | 13110612 | 13110615 | 13110618 | 13110621 | 13110700 | 13110703 | 13110706 | 13110709 | 13110712 | 13110715 | 13110718 | 13110721 | 13110800 | 13110803 | 13110806 | 13110809 | 13110812 | 13110815 | 13110818 | 13110821 | 13110900 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Present day | control | 50.931 | 62.157 | 67.4319 | 68.4095 | 66.4528 | 65.3761 | 71.3496 | 75.4239 | 75.4239 | 77.2253 | 72.2599 | 74.3906 | 73.2548 | 73.8276 | 73.798 | 73.6083 | 74.6169 | 52.7674 | 50.3892 | 47.9409 | 50.2623 | 50.1959 | 46.8147 | 53.9531 | 55.5752 |
| RCP4.5 | -2.0802 | 51.022 | 60.8924 | 68.2414 | 67.4124 | 64.5326 | 65.3401 | 67.2067 | 60.8478 | 66.2398 | 71.419 | 74.0046 | 68.9558 | 73.2493 | 66.3253 | 70.2847 | 74.9708 | 75.1451 | 48.5398 | 54.5872 | 53.4607 | 56.382 | 48.9222 | 45.0575 | 43.5198 | 46.8516 |
| RCP8.5 | -7.1022 | 51.0748 | 60.7494 | 62.6777 | 66.5233 | 63.5094 | 56.457 | 63.3201 | 62.724 | 65.0494 | 61.9036 | 66.755 | 68.3732 | 63.7352 | 67.0876 | 67.4151 | 69.4834 | 70.1231 | 62.2715 | 51.9267 | 51.6078 | 52.9501 | 43.1745 | 44.9336 | 45.955 | 50.2217 |

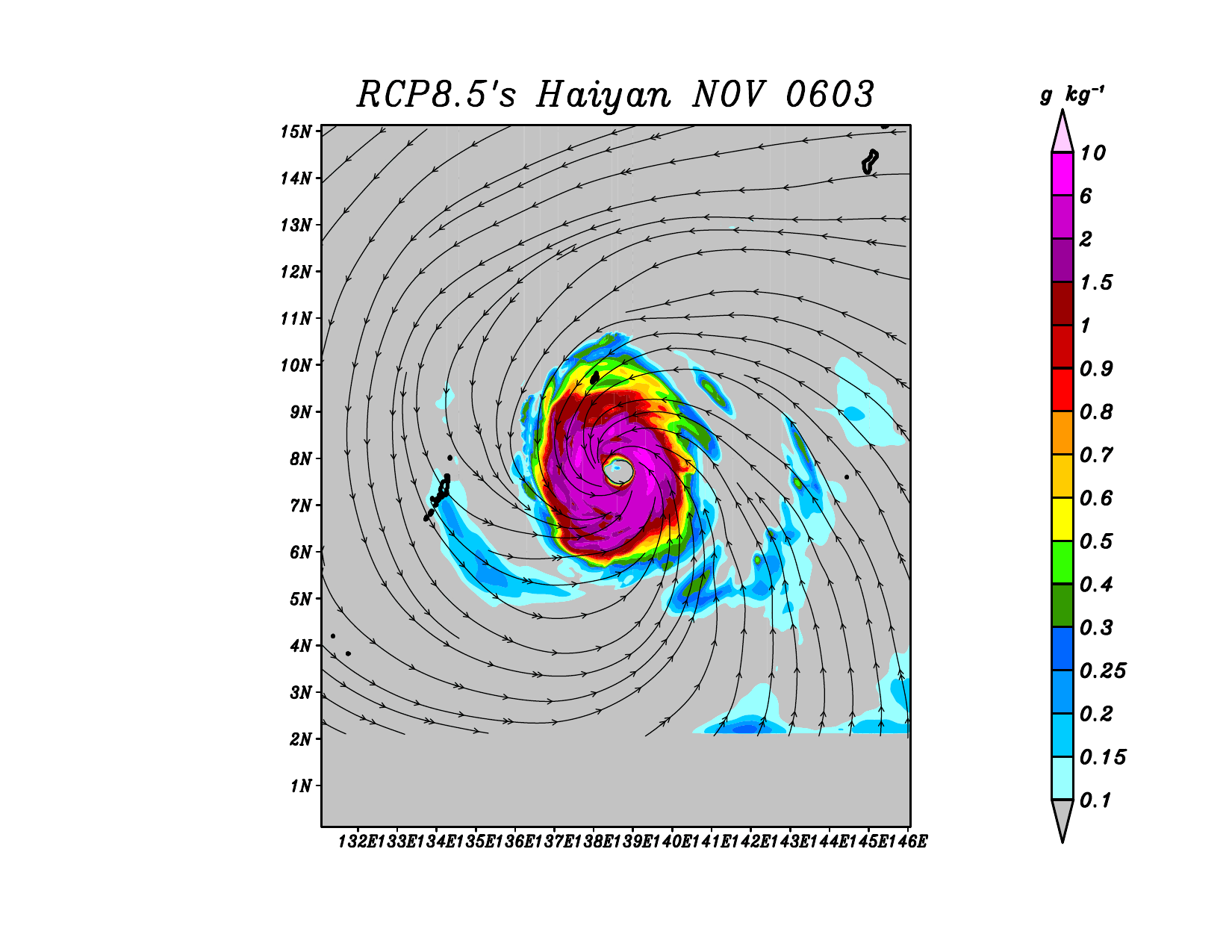

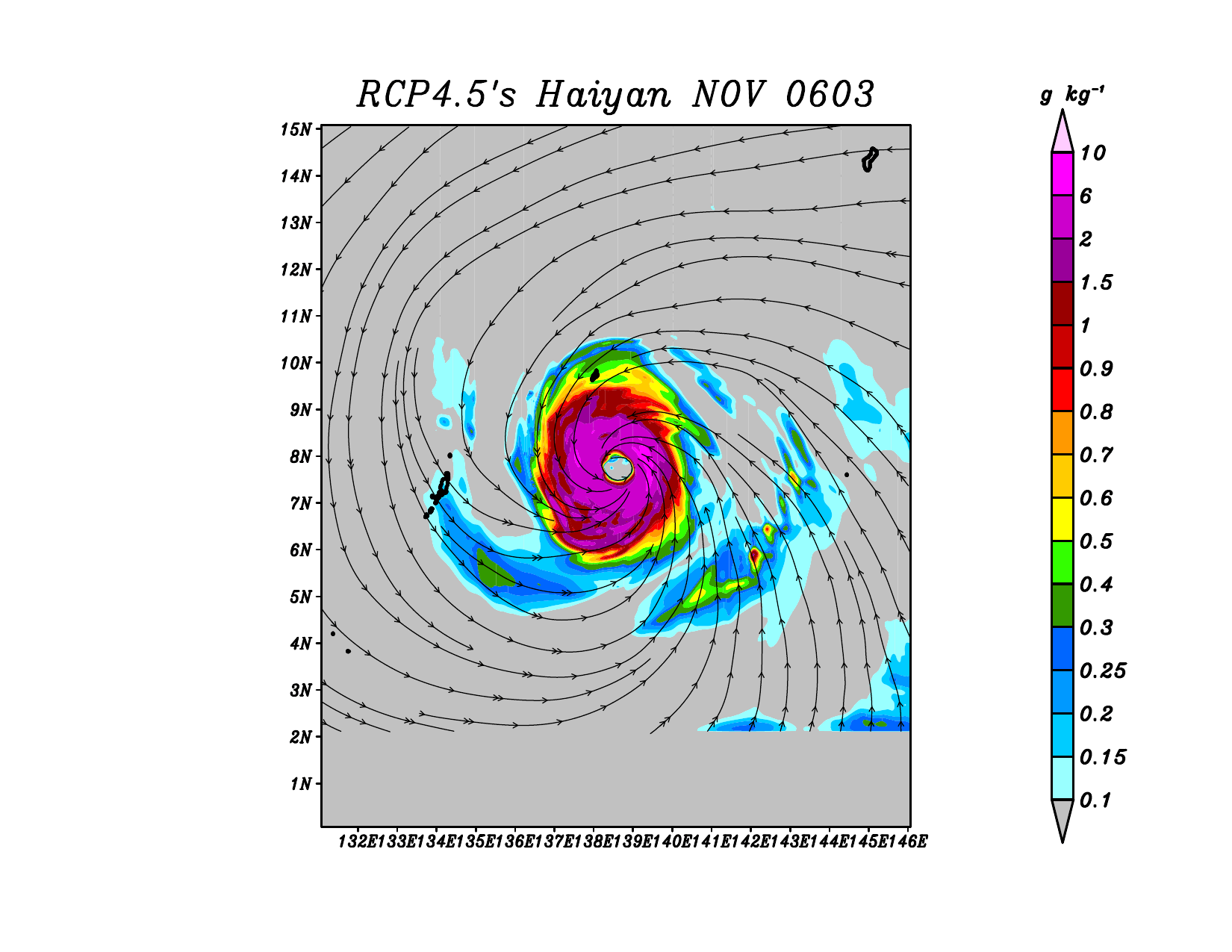

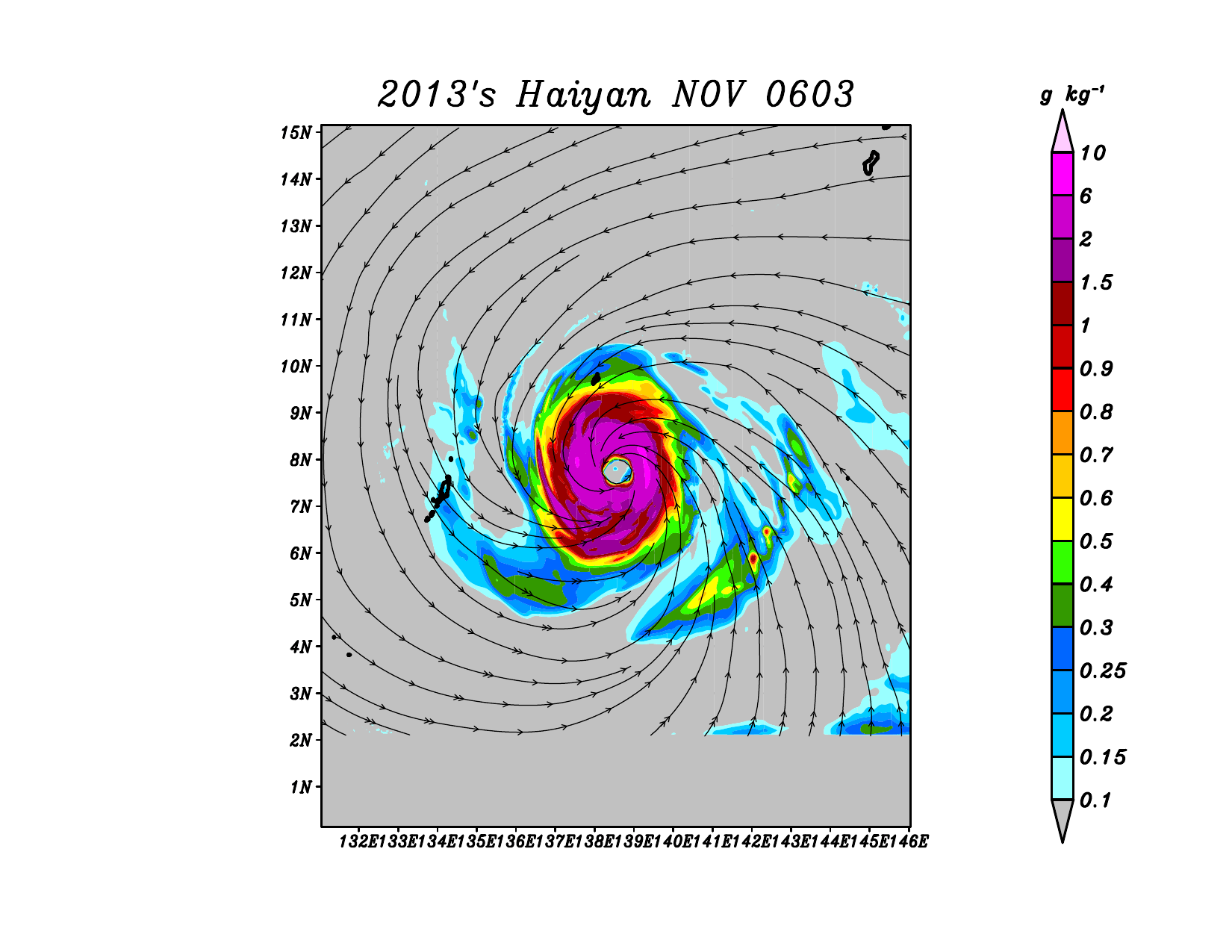

Rain water, snow, and graupel mixing ratio (g/kg)
